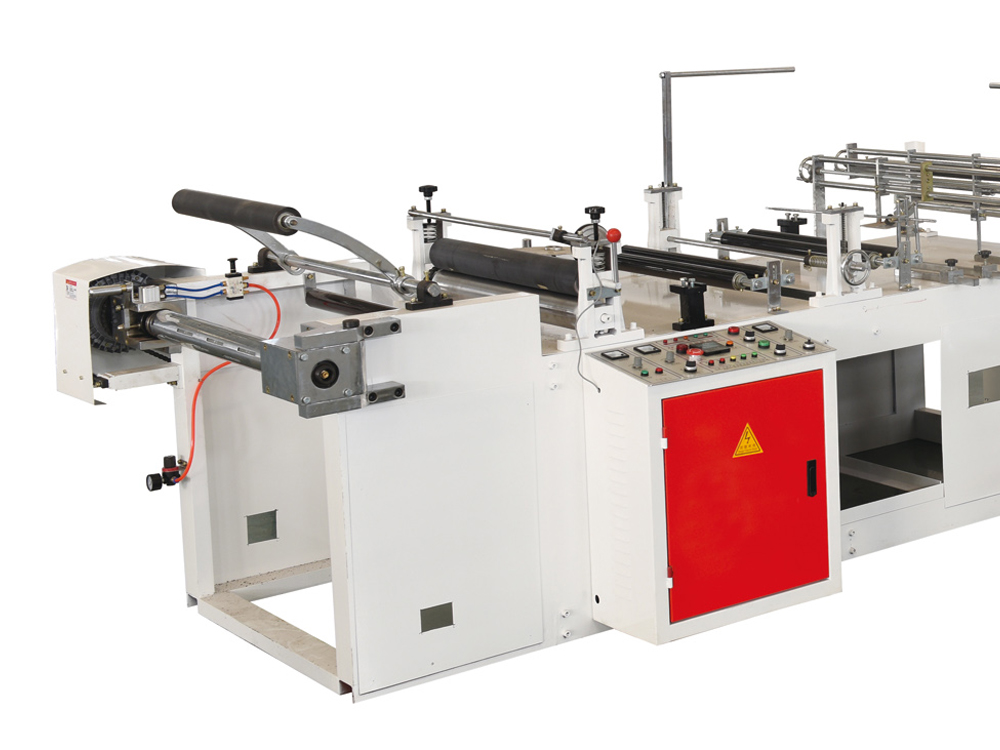

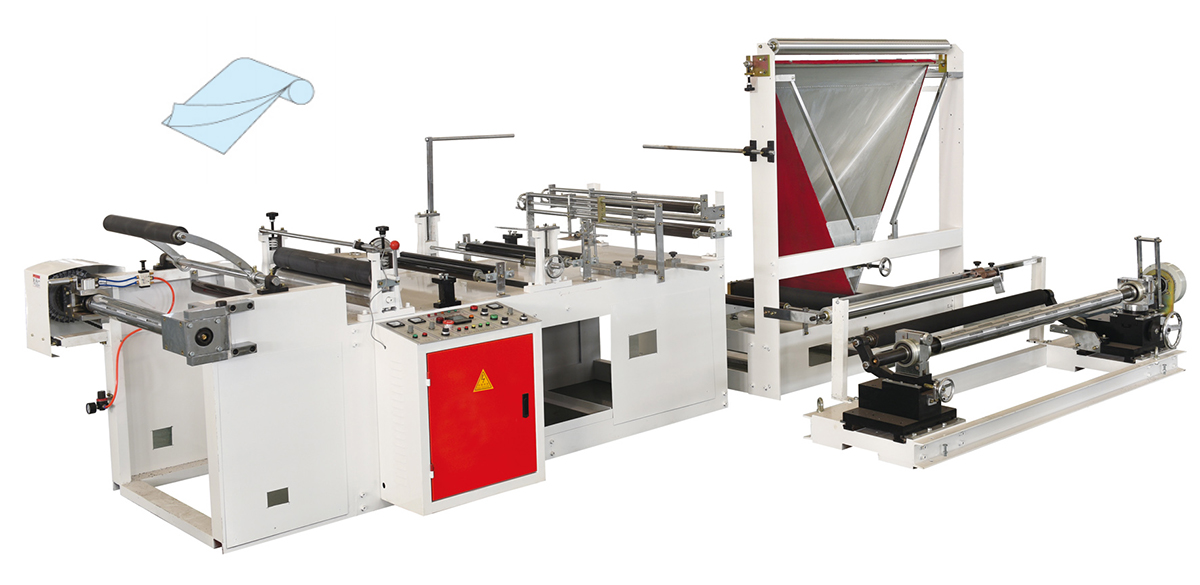

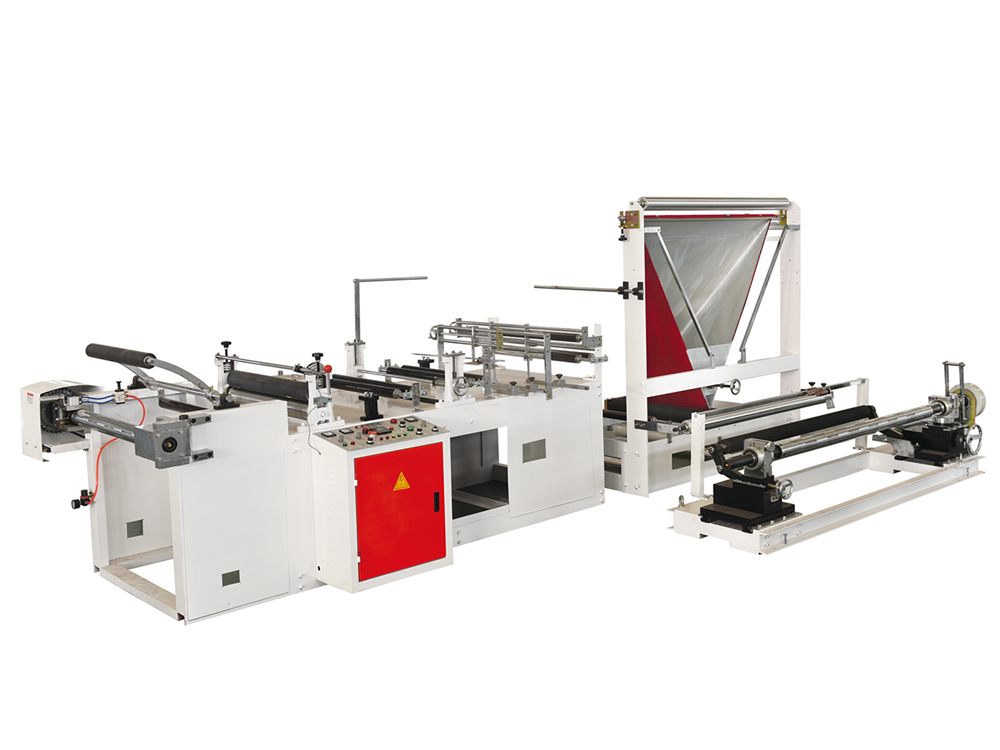

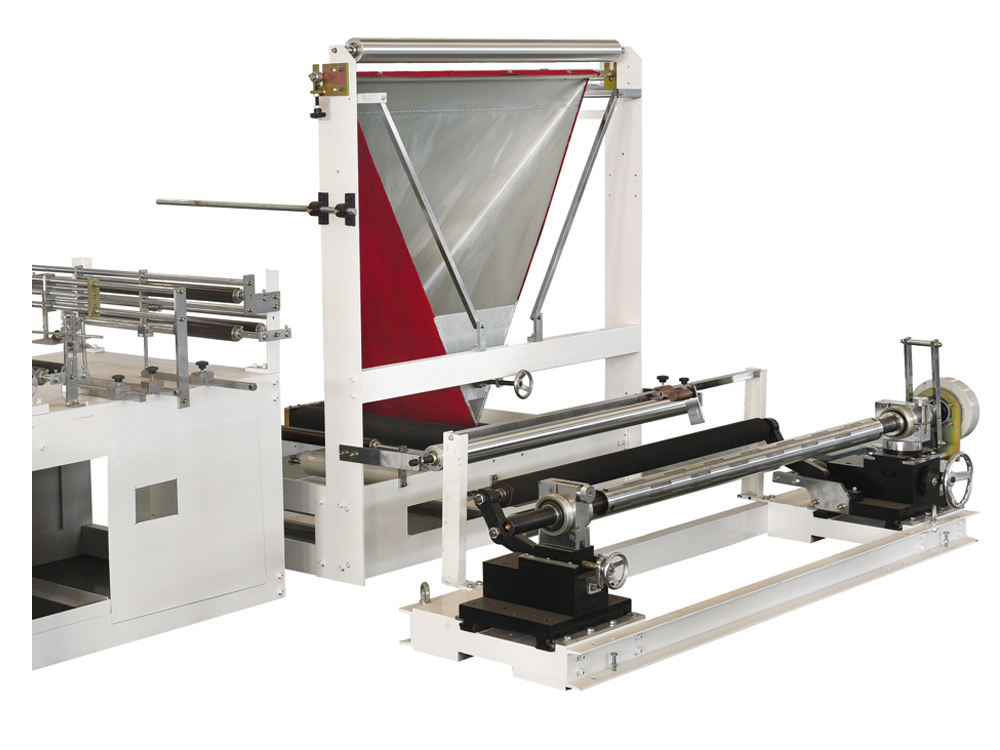

Automatic Error-correction Folding Machine
- Model: ZP-650/800
- Power: 2.5kw
- Weight:
- Describe:
Automatic error-correction plastic folding machine major producer of BOPP, HDPE, POF hot-melt tablets, side sealing bag in front of the fold forming device.
Automatic error-correction plastic folding machine major producer of BOPP, HDPE, POF hot-melt tablets, side sealing bag in front of the fold forming device.
Plastic Folding Machine Technical Parameters
Voltage
50Hz 380V/220V
Power
2.5kw
Diameter of unwinder
600mm
Width of unwinder
1300-1600mm
Diameter of rewinder
600mm
Feeding speed
80m/min
Features
1.The host adopts frequency conversion speed regulation
2.PLC man-machine interface control, the PC microcomputer control is optional
3.Unwinding automatic correction, magnetic powder brake tension
4.Tension control manual and automatic (optional)
5.Automatic meter
6.Rewinding is controlled by magnetic powder clutch
7.clutch control Income, unwinding inflatable axis
8.Insert pearl film, ultrasonic embossing
9.Automatically feeding the tape
Applications
Automatic error-correction plastic folding machine is mainly used to make hot melt sheets such as BOPP, HDPE and POF. It is used for the folding and forming of the plastic film, which is the previous process of the bag making machine. It has automatic photoelectric correction function amd is easy to operate. This machine has high speed, high precision and low noise, and the edge banding is neat and firm. It is an ideal equipment for making all kinds of high-grade plastic bags.
